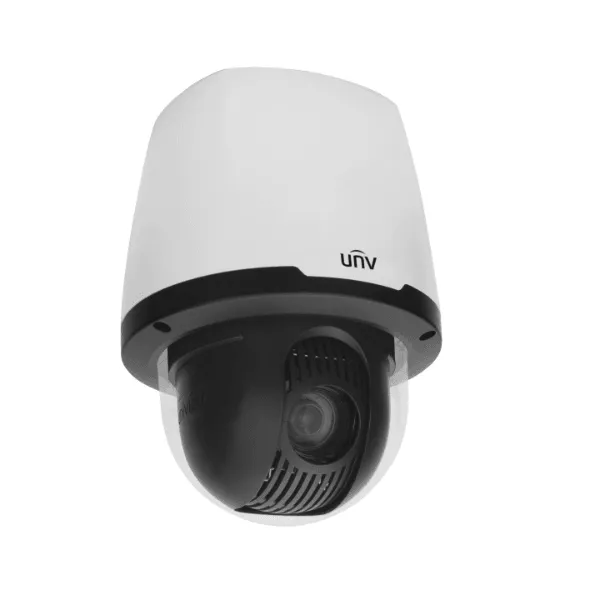

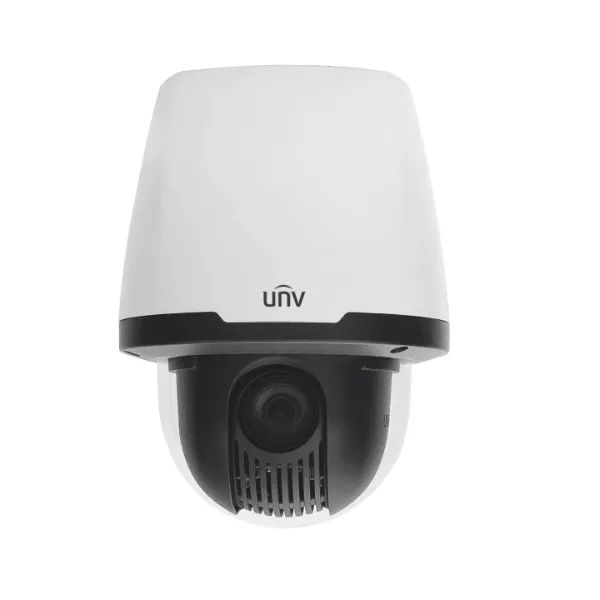

High quality 2 megapixel Uniview ptz dome camera, with 22X optical zoom and fast focusing.
Model: IPC6222EI-X22UP
Night Vision | Commercial | 22X Optical Zoom
Features
- 2MP IR Network PTZ Dome Camera
- 22x optical zoom
- Accurate and fast focusing
Specifications
| Camera | |||||
| Sensor | 1/2.8", progressive scan, 2.0megapixel, CMOS | ||||
| Lens | 5.2 ~ 114.4mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 16 | ||||
| Optical Zoom | 22 | ||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 5.2mm | 80.7 | 32.3 | 16.1 | 8.1 | |
| 114.4mm | 1775.2 | 710.1 | 355 | 177.5 | |
| Angle of View (H) | 55.9~3.5 | ||||
| Angle of View (V) | 33.5~1.6 | ||||
| Angle of View (O) | 68.8~4.2 | ||||
| Shutter | Auto/Manual; shutter time: 1/6 s ~ 1/100000 s | ||||
| Minimum Illumination | Colour: 0.001 lux (F1.5, AGC ON) B/W: 0.0001 lux(F1.5, AGC ON) | ||||
| Iris | Auto/Manual; F1.5 ~ F3.0 | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52dB | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream:2MP (19201080):Max. 30 fps; Sub Stream:2MP (19201080):Max. 30 fps; Third Stream: D1 (720576): Max. 30 fps | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 24 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Smart | |||||
| Behavior Detection | Intrusion, cross line, motion detection | ||||
| Intrusion | Enter and loiter in a pre-defined virtual region | ||||
| cross line | Cross a pre-defined virtual line | ||||
| motion detection | Moving within a pre-defined virtual region | ||||
| Recognition | Face detectionAudio detection | ||||
| Intelligent Identification | Defocus, Scene Change | ||||
| Statistical Analysis | People counting | ||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8 KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 128 GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP | ||||
| Compatible Integration | ONVIF(Profile S, Profile G),API | ||||
| Pan & Tilt | |||||
| Pan Range | 360 (endless) | ||||
| Pan Speed | 0.1/s ~ 400/s | ||||
| Preset speed:540/s | |||||
| Tilt Range | 18 ~ 90 (auto reverse) | ||||
| Tilt Speed | 0.1 ~ 240/s | ||||
| Preset speed: 400/s | |||||
| Number of Presets | 1024 | ||||
| Patrol | Preset patrol, route patrol, recorded patrol | ||||
| Home Position | Supported | ||||
| Interface | |||||
| Audio I/O | Audio cable | ||||
| 1 Input: impedance 35 k; amplitude 2 V [p-p] | |||||
| 1 Output: impedance 600 ; amplitude 2 V [p-p] | |||||
| Alarm I/O | 2/ 1 | ||||
| Serial Port | 1 RS485 | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| Video Output | 1 BNC, impedance 75 ; amplitude 1 V [p-p] | ||||
| General | |||||
| Power | 24 V AC25%, 24 V DC25%, PoE(IEEE802.3 at) | ||||
| Power consumption: 8~ 20W | |||||
| Dimensions(xH) | 195x263 mm (7.7x 10.4) | ||||
| Weight | 3.2kg(7.1lb) | ||||
| Working Environment | 20C ~ 50C (-4F ~ 122F), Humidity:10%~ 95% RH(non-condensing) | ||||
| Ingress Protection | IP65 | ||||
| Vandal Resistant | IK10 | ||||
