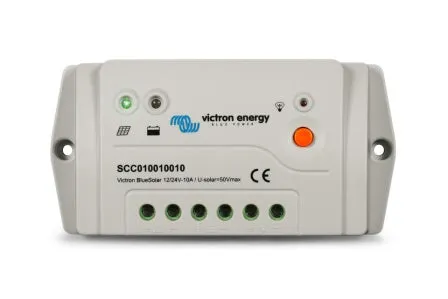

PRODUCT CODE : SCC010010010

Programmable

The BlueSolar PWM-Pro series is ready for use with its default settings.

It is also fully programmable:

• With help of a computer and software (available free of charge on Victron's website)

• With the dedicated BlueSolar-Pro remote panel (see features below)

Special Features

• Lighting control function, fully programmable.

• Three-stage battery charging (bulk, absorption, float) fully programmable.

• Integrated battery monitor function (remote panel needed to display state of charge).

• Load output with low voltage disconnect and manual control (default setting).

• Optional external temperature sensor.

• Load output protected against overload and short circuit.

• Protected against reverse polarity connection of the solar array and/or battery.

Day/Night Timing Options

See Victron's Remote Panel Manual on their website for details.

Enclosure:

Terminal size: 4mm²

Protection category: IP30

Weight: 0.13kg

Dimensions: 138mm (H) x 70mm (W) x 37mm (D)
