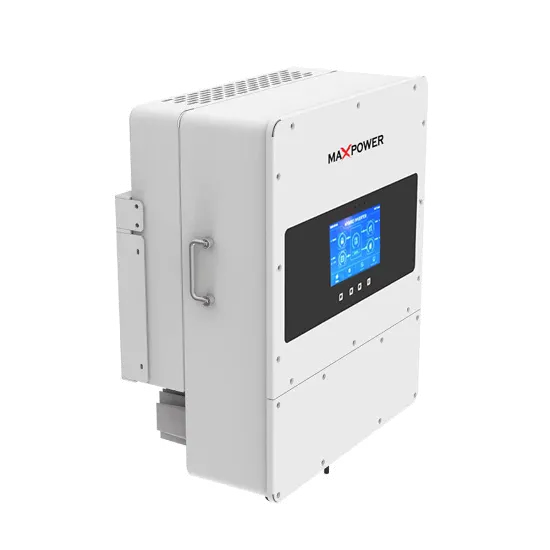

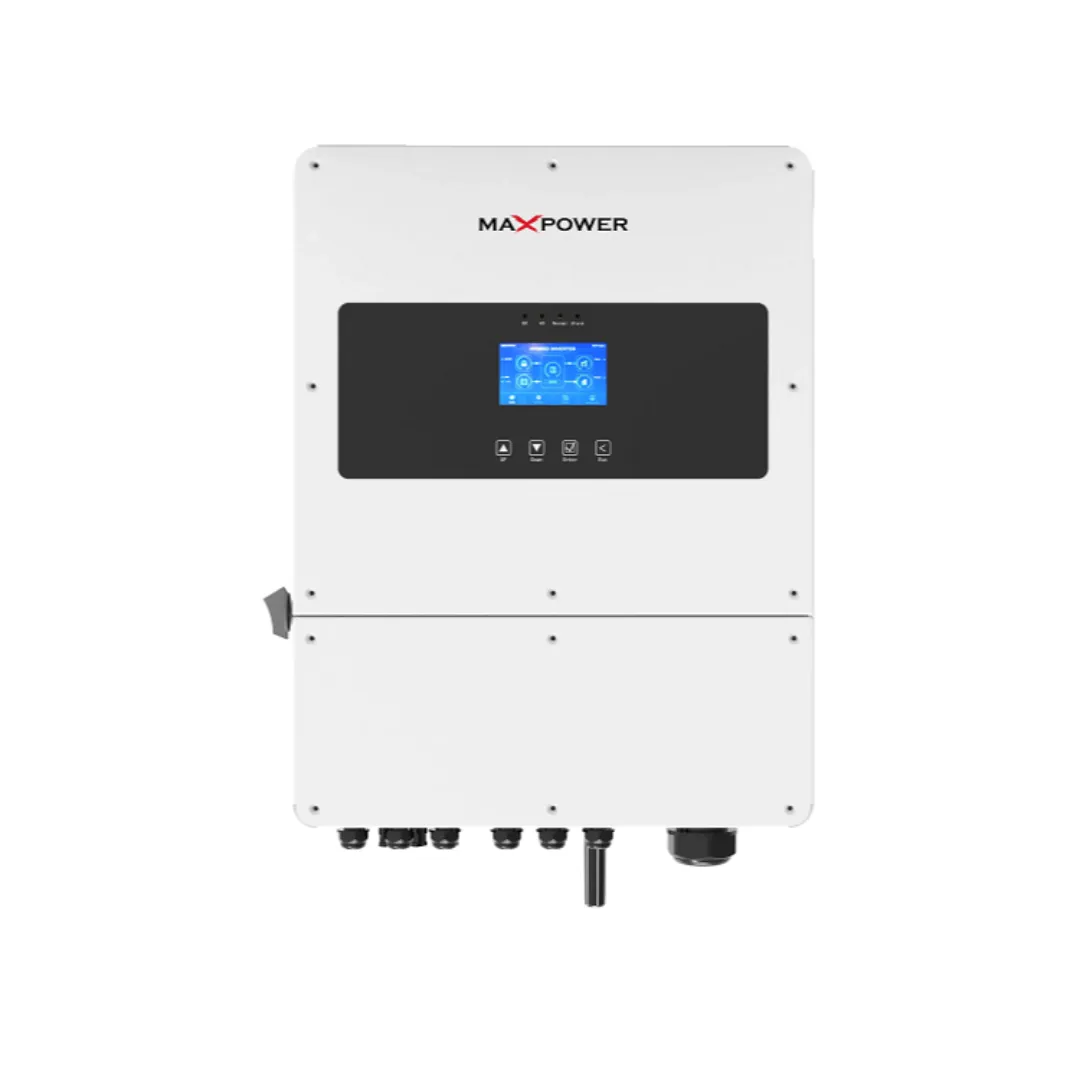

MaxPower Voltas 12K-H4 PV18000 12KW IP65 Three Phase Hybrid Inverter
The MaxPower Voltas 12K-H4 is a high-capacity three-phase hybrid inverter, offering 12KW of output and a 18,000W PV capacity, perfect for large-scale residential and commercial solar systems. With features such as dual MPPT tracking, a robust IP65 enclosure rating, and a high-efficiency conversion rate, this inverter ensures reliable and efficient performance in demanding environments.
Key Features
- 12KW Rated Output: Provides steady power for large-scale applications, ensuring a reliable energy supply.
- 18,000W PV Capacity: Supports extensive solar panel configurations with a wide input voltage range (160-800V).
- Digital Touch Display: Offers easy access to system information and control for seamless monitoring.
- IP65 Enclosure Rating: Designed to withstand harsh weather conditions and outdoor environments.
- Dual MPPT Trackers: Optimizes energy harvesting by using two MPPT trackers, allowing better control over multiple PV strings.
- Battery Compatibility (Lead-acid/Li-Ion): Supports both battery types with adaptable charging strategies for lithium-ion batteries.
- Max Efficiency of 97.9%: Ensures minimal energy loss, improving overall system efficiency.
- Self-Adaptive Charging for Li-Ion Batteries: Integrates seamlessly with Battery Management Systems (BMS) for optimal battery health and performance.
- Grid Compliance: Meets various grid regulations, including CEI 0-21, VDE-AR-N 4105, and more.
Additional Details
- Surge Power: Capable of delivering 2 times the rated power for up to 10 seconds (off-grid mode).
- AC Output: Rated output of 12,000W, with a peak output of 13,200W for reliable power delivery to your appliances.
- Smart Cooling: Keeps the inverter at optimal temperatures, while maintaining noise levels below 45 dB for quiet operation.
- Comprehensive Protection: Includes reverse polarity protection, overcurrent protection, insulation resistance detection, and more for safety and durability.
- Communication with BMS: Supports CAN and RS485 protocols for easy integration with BMS and other monitoring systems.
- Warranty: 5-year parts replacement warranty for long-term reliability and peace of mind.
The MaxPower Voltas 12K-H4 is ideal for businesses or large homes looking for a high-performance hybrid inverter, offering efficient energy conversion, advanced protection, and flexibility in power storage and usage.

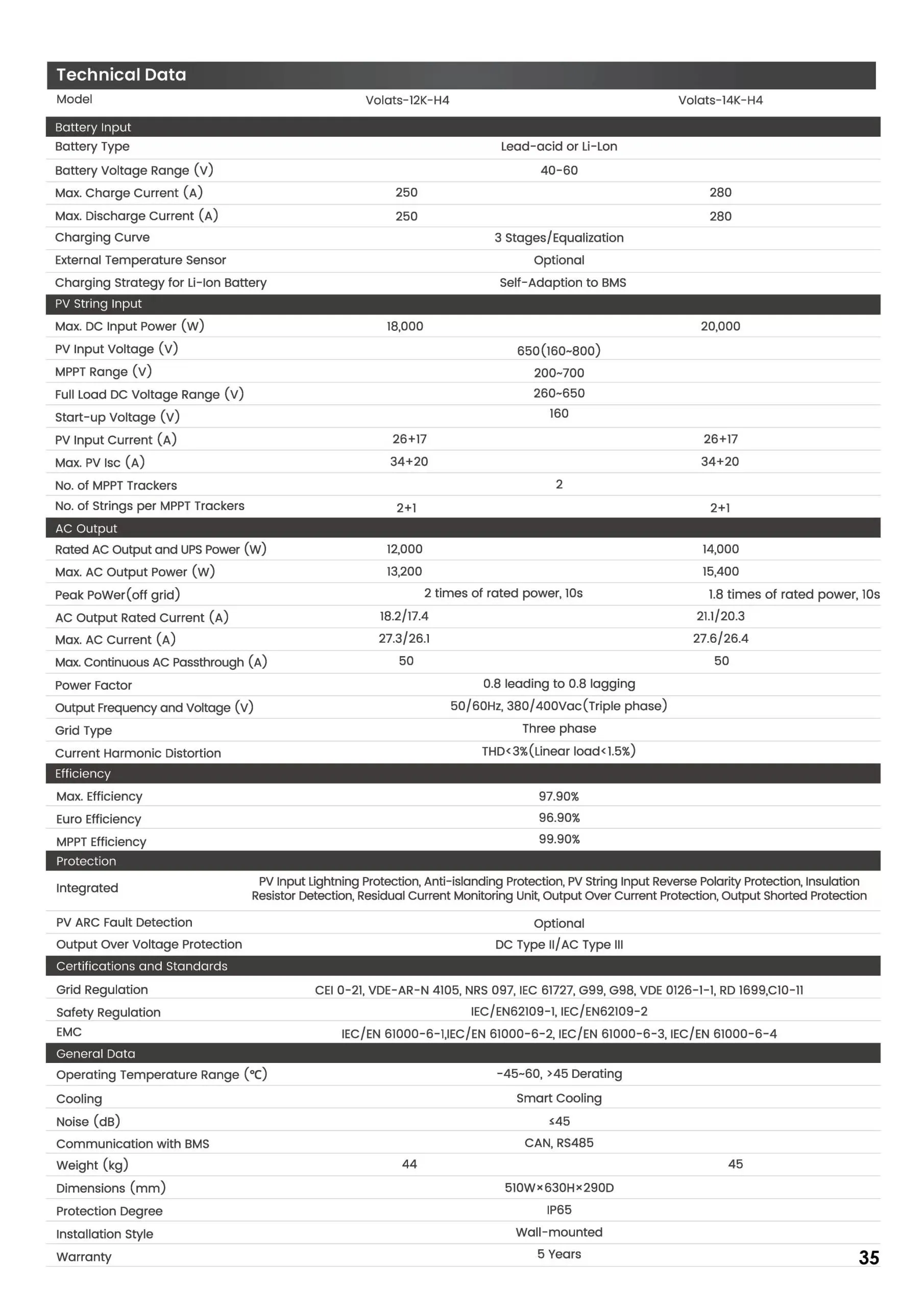

| Model | Volats-12K-H4 |
| Battery Input | |
| Battery Type | Lead-acid or Li-Lon |
| Battery Voltage Range (V) | 40-60 |
| Max. Charge Current (A) | 250 |
| Max. Discharge Current (A) | 250 |
| Charging Curve | 3 Stages/Equalization |
| External Temperature Sensor | Optional |
| Charging Strategy for Li-Ion Battery | Self-Adaption to BMS |
| PV String Input | |
| Max. DC Input Power (W) | 18,000 |
| PV Input Voltage (V) | 650 (160-800) |
| MPPT Range (V) | 200-700 |
| Full Load DC Voltage Range (V) | 260-650 |
| Start-up Voltage (V) | 160 |
| PV Input Current (A) | 26 17 |
| Max. PV Isc (A) | 34 20 |
| No. of MPPT Trackers | 2 |
| No. of Strings per MPPT Trackers | 2 1 |
| AC Output | |
| Rated AC Output and UPS Power (W) | 12,000 |
| Max. AC Output Power (W) | 13,200 |
| Peak Power (off grid) | 2 times of rated power, 10s |
| AC Output Rated Current (A) | 18.2/17.4 |
| Max. AC Current (A) | 27.3/26.1 |
| Max. Continuous AC Passthrough (A) | 50 |
| Power Factor | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage (V) | 50/60Hz, 380/400Vac (Triple phase) |
| Grid Type | Three phase |
| Current Harmonic Distortion | THD <3% (Linear load<1.5%) |
| Efficiency | |
| Max. Efficiency | 97.90% |
| Euro Efficiency | 96.90% |
| MPPT Efficiency | 99.90% |
| Operating Temperature Range (°c) | -45-60, >45 Derating |
| Cooling | Smart Cooling |
| Noise (dB) | <45 |
| Communication with BMS | CAN, RS485 |
| Weight (kg) | 44 |
| Dimensions (mm) | 510WX630H×290D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Warranty | 5 Years |
