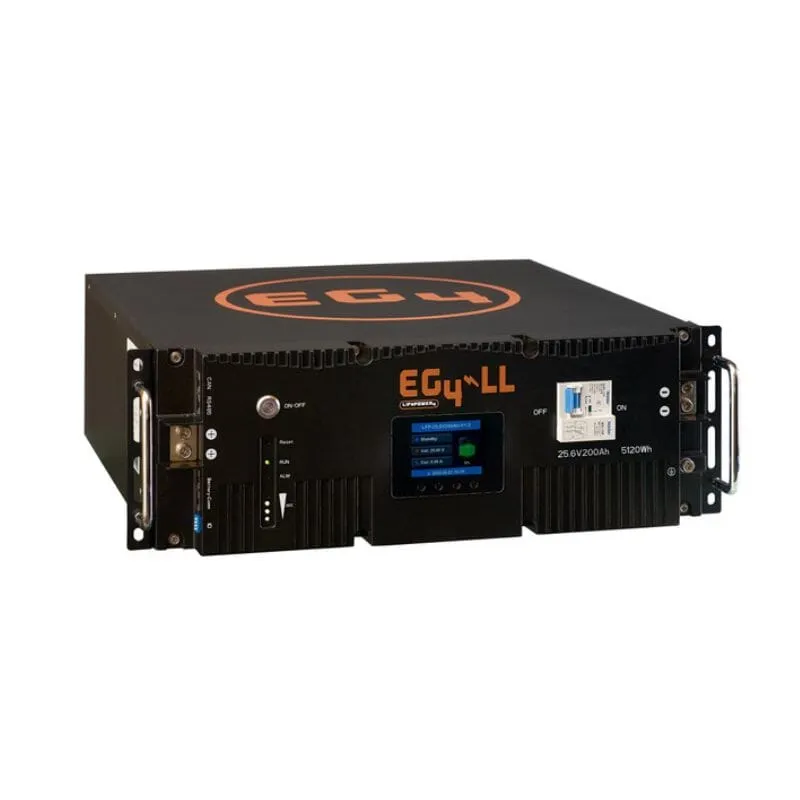

EG4-LL Lithium Battery 24V 200AH Server Rack Battery

Our EG4-LL 24V batteries offer a second-to-none price to performance. Get peace of mind knowing these batteries are designed to last for more than 7000 deep charge and discharge cycles; beyond 15 years with an 80% depth of discharge daily!

On-board LCD TouchScreen

Easy to see BMS monitoring and selectable closed-loop communications with Victron and Growatt inverters.

Dual On-board Fire Arrestors

Offer fail-safe operation in high-risk environments and protect against rare hardware failure on high-voltage solar charge controllers.

Welded Prismatic Cell Connections

Never worry about losing power due to a loose internal connection.

PC Monitoring Software

See real-time statistics of your battery.

Parallel up to 16 Batteries

Get the most power possible! Up to 81.9 kWh while maintaining BMS communications.

Rack Mount Design

4U server rack mounting makes it convenient to store.

Performance Components

• Reliable Built-In EG4 Smart BMS, Voltage, Current, Temp. and Health Management
• Stress-Free Battery Bank Expansion Capacity
• Cell & Module Voltage Protection
• Short Circuit Protection >250A <0.1mS
• Temperature Protection
• Operating Power Consumption <25mA

Advanced Configurability

• On-board LCD Screen
• PC Monitoring Software
• Lifetime firmware updates

Reliability & Safety Testing

• Dual On-board Fire Arrestors
• Environmentally Friendly & Lead-Free
• Design Optimized and Tested by EG4's R&D Solar Laboratory. In-House & Texas Based
• 10-Year Warranty Supported and serviced out of Texas

EG4-LL 24V Specifications

• Kilowatt-hours: 5.12kWh
• Voltage 25.6V
• Capacity 200Ah
• Charging Voltage (Bulk/Absorb) 28.1V ( /-0.2V)
• Float 27V ( /-0.2V) Low DC Cutoff 23.5 - 22V (depending on load - start high, lower if needed)
• Charging Current Max Constant Charge: 100A (30-50 recommended)
• Discharging Current Max Constant Discharge: 100A
• Dimensions:17.7" x 19.3" x 6.1"
